Description

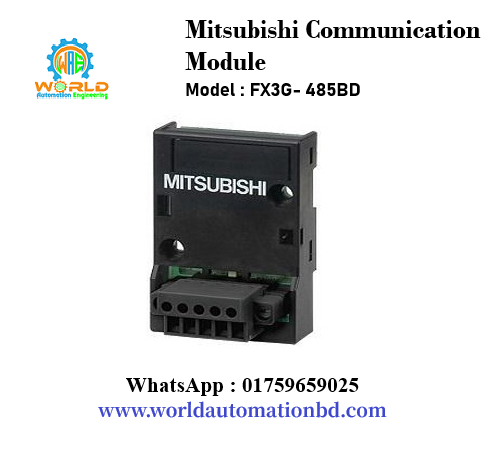

FX3G-485-BD-Modbus Communication Module is a communication board for RS485 connected to the base unit for of the FX3G Series programmable controller to be use for the following applications. Data transfer using no protocol. ii. Data transfer using dedicated protocol. iii. Data transfer using the parallel link. iv.
Specification of FX3G-485-BD-Modbus Communication Module
| Model: | FX3G-485-BD |
| Series | FX |
| Description | RS485/422 Communication Board |
| Width | 35(mm) |
| Width |
51.2(mm) |
| Depth |
0.02(mm) |
| Transmission standard |
Conforming to RS485 and RS422 |
| Transmission distance | Max. 50 m |
| LED indicators | SD, RD |
| Communication method and protocol | Half-duplex communication for N:N network, Dedicated protocol (format 1 or format 4), Parallel link and Full-duplex communication for Full-duplex communication. |
| Supported baud rate | Dedicated protocol and no protocol: 300 ~ 19,200 (bps)
N:N network : 38,400 (bps) Parallel link : 19,200 (bps) |
| Isolation | No isolation |
