Mitsubishi FX2N-2AD Analog Input Module

Description

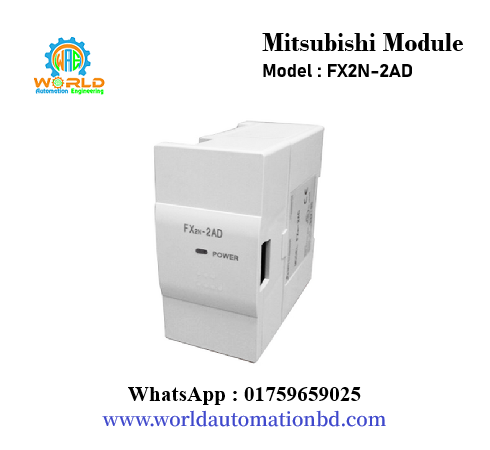

Mitsubishi Analog Input Module-FX2N-2AD

Click Here for:

• Mitsubishi FX-Series PLC
• FX-Series Extension Module

Download User Manual: FX2N-2AD Manual.pdf

Introduction: Mitsubishi-FX2N-2AD

Mitsubishi Analog Input Module-(FX2N-2AD) is used to convert the
analog input of two points (voltage and current input) into a digital value of 12 bits, and to forward the
values to the Programmable Controller (hereafter referred to as a PLC).
FX2N-2AD can connected to the FX0N, FX1N, FX2N, FX2NC, FX3G, FX3GC, FX3U, and the FX3UC series
Programmable Controllers.

1) The analog input is selected from the voltage or current input by the method of connecting wires.
At this time, assume the setting to be two channels common analog input (voltage or current input).
2) The analog to digital conversion characteristics can be adjusted.
3) The block occupies 8 I/O points which can be allocated from either inputs or outputs.
4) The data transfer with the PLC uses the FROM/TO instructions.
FX3U/FX3UC series PLC can use direct specification of buffer memory.
