Description

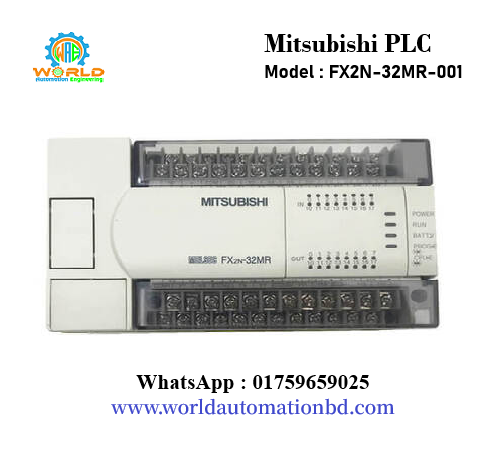

Mitsubishi PLC-FX2N-32MR FX2N series Mitsubishi PLC is compact device with built in I/O’s offer offer’s extremely fast programming execution and provide maximum flexibility. Mitsubishi PLC-FX2N-32MR has 16 digital inputs and 16 relay outputs total 32 I/O points which can expendable to 256 points. RS 232, RS422 and RS485 communication are available, RS232 is for communication with computer for PLC programming and RS485 is for internal bus communication with peripheral devices . 8k programming steps with high speed execution instructions. Mitsubishi PLC-FX2N-32MR PLC is very powerful device to automate a machine.
Product Specification of Mitsubishi PLC-FX2N-32MR:
| Model, Series | FX2N-32MR, FX2N |
| Input | 16 point, Digital |
| Output | 16 Point |
| Output Type | Relay |
| Supply Voltage | 100-240VAC |
| Communication Port Type | RS232, RS422, RS485 |
| Program Capacity | 8000 Steps |
| Output Current | 2 A |
| Number of Communication Ports | 1 |
| Battery Backup |
Yes |
| Dimension | L*W*D=90mm*150mm*87mm |
| Mounting Type | Din Rail |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +55°C |
Download Link:

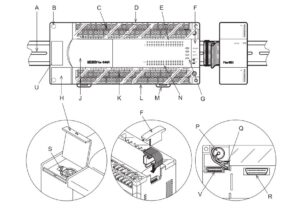

FX2N Series Product Out-line:
| A | DIN rail 35mm (1.37 inch) to DIN46277. | L | Output terminal cover. |
| B | Alternative direct mounting holes. | M | Din rail clip. |
| C | Input terminals. | N | Output indicators. |
| D | Input terminal cover. | P | Battery for battery backup. |
| E | Input indicators. | Q | Connector for use with battery or supercapacitor for power backed memory. |
| F | I/O Expansion bus cover. | R | Memory cassette port – will accept any FX memory cassette. |
| G | Status indicators, POWER, RUN, BATT.V, PROG.E, CPU.E. | S | Run/ Stop switch. |
| H | Programming port cover. | T | Programming port. |
| J | Top panel. | U | Cutout for Extension board. |
| K | Output terminals. | V | Extension board connector. |
World Automation and Engineering is the biggest sealer of Mitsubishi PLC and accessories in Bangladesh. We have whole sale and retail both convenience method to purchase your best deal. We provide 12 months warranty on our every product and also provide after sale support and services. Delivery service are also available via courier, we deliver our product via Sundarban Courier Service and SA Paribahan all over Bangladesh. For requirement of any other information feel free to contact With WhatsApp. WhatsApp No: +88 01759 659025.
