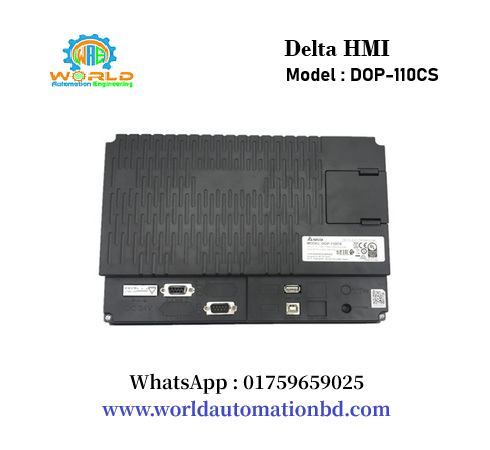

Delta HMI-10.1″-(DOP-110CS) best Seller price in Bangladesh in World Automation Engineering.
Thank you for visit us. Here you can purchase Delta HMI-10.1″-(DOP-110CS) and also other Delta HMI. DOP-110CS HMI panel type 10.1″ TFT LCD (65535 colors), resolutions 1024 x 600 pixels, back light LED Back Light, Display Range, 226 mm x 128.7 mm, Brightness 300 cd / m² (Typ.), CPU ARM Cortex-A8 (800 MHz), Flash ROM 256 Mbytes, RAM 256 Mbytes. We provide 12 Month Product Warranty. We have some more Products of DOP-100 Series Such as-DOP-107BV,DOP-107EV,DOP-103BQ,DOP-107CV. On our website you will find products Software and operation Manual.
| Specification | |
| Model | DOP-110CS |
| Display Panel type | 10.1″ TFT LCD (65535 colors) |
| Resolution | 1024 x 600 pixels |
| Display range | 226 mm x 128.7 mm |
| Brightness | 300 cd / m² (Typ.) |
| CPU |
ARM Cortex-A8 (800 MHz) |
| Flash ROM | 256 Mbytes |
| RAM | 256 Mbytes |
| USB | 1 USB Slave Ver. 2.0; 1 USB Host Ver. 2.0 |
| COM1 | RS-232 (supporting flow control)*2 |
| COM2 | RS-232 (supporting flow control) / RS485*2 |
| COM3 | RS-422 / RS-485*2 |
| Operation voltage | DC +24V (-15% to +15%) (please use an isolated power supply) |
| Dimension (W) x (H) x (D) mm | 272 x 200 x 61 |
Download Software & Manual:
Software: DOPSoft V4.00.16.30
Manual:
Other Products
Communication port pin assignment:
Note:
- Isolated power supply is recommended
- Backlight maximum luminance should be reduce at 50% when maximum drive current is supply to increase life-time. The life of LED backlight shown here is estimated at the room temperature of 25°C with ambient humidity.
- To ensure normal operation of the HMI, the recommended capacity of the power supply is 1.5 to 2 times of the specified power consumption.
- The withstand voltage of the isolated power circuit is 1500V peak for 1 minute.
- Read user manual carefully before use.
