Description

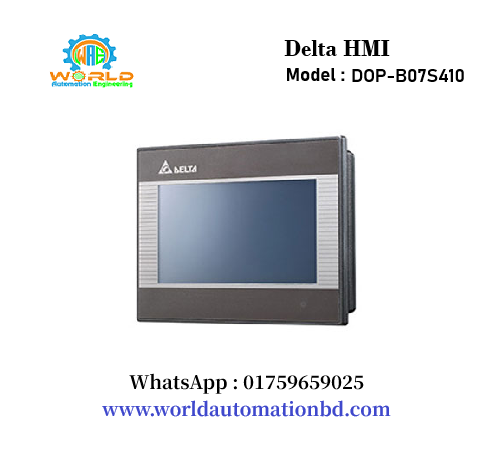

Best Seller price in Bangladesh for Delta HMI -(DOP-B07S410) is World Automation Engineering.
We Sell Products at wholesale and retail Price. We provide 12 Month Product Warranty. We have some more Products of DOP-B074111, DOP-110CS and DOP-100 Series Such as-DOP-110CS, DOP-107EV, DOP-103BQ, DOP-107CS. On our website you will find products Software and operation Manual.
Product Specification
| Specification | |
| Model: | DOP-B07S410 |
| Panel type | 7″ TFT LCD (65535 colors) |
| Manufacturer | Delta Electronics |
| Resolution | 800 x 480 pixels |
| Backlight | LED |
| COM Ports |
3 set of COM Ports, Support RS232/RS422/RS485 |
| Data Transfer/Download | RS-232, USB |
| Memory | NOR Flash ROM 128 MB, SD RAM 64Kbytes |
| Power | DC +24V |
| Power Consumption | 4.0 W |
| Display Size | 154.08 x 85.92 mm |
Download Software & Manual:
Software: DOPSoft V4.00.16.30
Manual:
Other Products

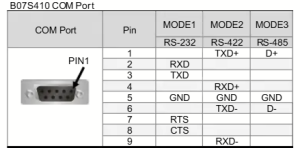

Communication port pin assignment:
Delta HMI-DOP-B07S410 7inch pin diagram
